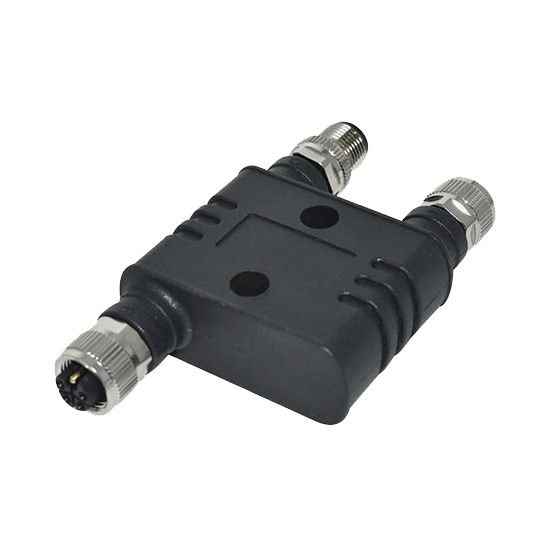

M12 S-Coding（4+PE）Pin Male To Female*2 Adapter-M12 Connectors-Shenzhen Signal Electronics Co.,LTD

Order No.: 120504-10-001

Product No.: N / A

Return to List

Technical Data Download 3D

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
4	-	-	-	IP67 / IP68	＞100 mating cycles	+80℃	-40℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
630V	12A	≤3mΩ	≥100MΩ

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au

The 3D feature is not yet available, so stay tuned!
