What is the purpose of the M12 circular connector code

　　Advantages of M12 connectors

　　One of the main advantages of the M12 circular connector is its strong protection.With a protection rating of IP67,they are resistant to water,dust and moisture and maintain high performance in extreme environments.This protection makes M12 connectors a key component in industries such as automation,transport,energy and chemicals.

　　In addition,M12 connectors have excellent shock resistance.In environments with high levels of vibration or shock,these connectors are still able to transmit signals and power stably.This prevents problems such as loose connections or signal interference caused by vibration.As a result,industries such as precision equipment,automated production lines,robotic systems and sensor networks rely on M12 connectors for reliable and robust connections.

　　Coded design-preventing misconnections

　　Another outstanding feature of M12 circular connectors is their coded design,which prevents accidental misconnections between different signal types.The coding system recognises the electrical characteristics and application scenarios of the connectors and ensures that they are only paired with compatible sockets or plugs.This design prevents incorrect pairing,reduces the risk of equipment damage and significantly improves the safety and reliability of industrial equipment.

　　The coded keyway works:

　　Prevents mis-pairing and mis-connections:the M12 connectors are coded to ensure that each connector is paired only with its intended socket or plug,thus solving the problem of incorrect pairing or incorrect insertion.This design helps avoid damage and operational errors.

　　Improved security:As equipment becomes more complex,security becomes a critical requirement.A coding system minimises human error,ensures long-term stable operation and reduces the risk of failure due to improper connections.

　　Ensure correct signal transmission:Coding ensures the correct distribution of signals,whether they are power,data or control signals.This prevents problems such as signal loss or interference.

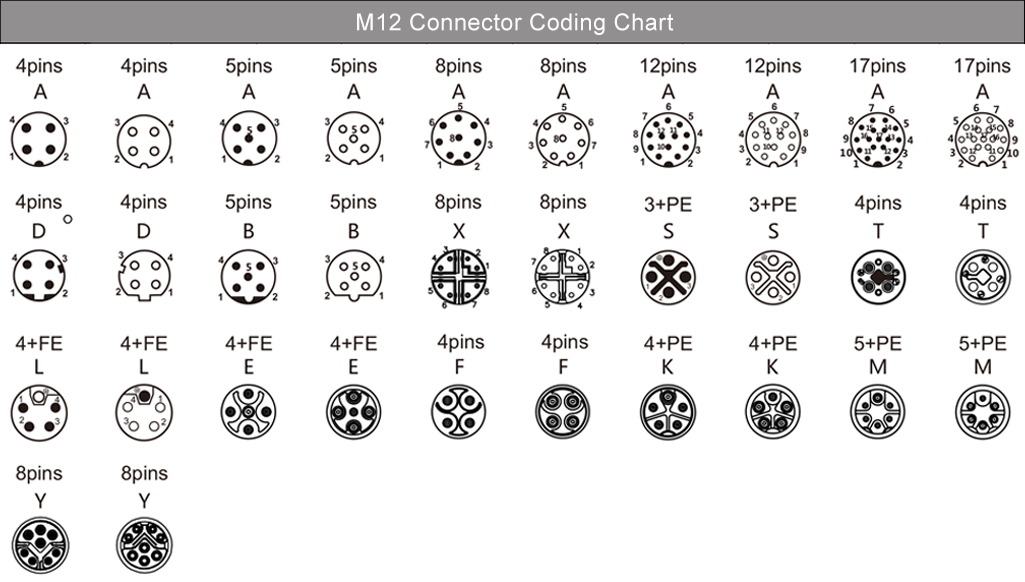

　　M12 connector coding instructions

　　M12 circular connectors use letter codes to indicate electrical characteristics,application type and supported transmission speeds.These codes help users to select the right connector for their needs.

　　A-Code:

　　A-codes are commonly used for general purpose sensors,actuators and IO-Link devices.The connectors can have from 2 to 17 pins to support a variety of connection needs.a-code connectors support 1Gbps Ethernet signal transmission and are also suitable for DC power connections.Their versatility makes A-code the most widely used in industrial automation.

　　B-Code:

　　B-code is designed for control systems and fieldbus communication protocols.These connectors typically have 5 pins to meet specific communication requirements in industrial automation.

　　D coding:

　　D-code connectors support 100Mbit Ethernet connections and typically use 4 pins.They are ideally suited for medium-speed data transmission,e.g.PROFINET networks,railway CCTV control systems and devices such as servo motors and encoders.

　　X-coding:

　　X-coded connectors are designed for high-speed data transfer and support Ethernet connections up to 10Gbps.These connectors typically use 8 pins and serve high-speed industrial networks,video surveillance and industrial communication systems.As bandwidth demands increase,X-coded connectors are expected to lead the future of high-speed industrial Ethernet.

　　K-Coded:

　　K-coded connectors meet specific AC power requirements and feature a unique 5-pin configuration that carries control,power and status signals.They are small,high current,high voltage,and IP67/IP68 rated,making them ideal for harsh environments with high temperatures,high humidity,and high vibration.

　　L-coding:

　　L-code connectors are used for high-power electrical connections in industrial equipment.They are small,high current and protected to IP67/IP68,providing precise,flexible connections in harsh industrial environments.

　　S-Code:

　　Designed for AC power connections,S-code connectors offer good shielding and a high degree of protection.These connectors are ideal for automation equipment that requires a reliable AC power connection and can replace C-code connectors in electrical systems.

　　T-Code:

　　T-code connectors are used for DC power connections.They are highly reliable,IP67 or higher waterproof,and are widely used in industrial automation equipment that requires a stable DC power supply.These connectors often replace Type A connectors in DC power applications,providing better stability and reliability.

　　What is the purpose of the M12 circular connector code?

　　Provides shielding protection:

　　Many M12 connectors with specific codes come with shielding to reduce electromagnetic(EMI)and radio frequency interference(RFI).This protection ensures stable and reliable data transmission,especially in environments where signal integrity is critical.

　　Prevents mismatches:

　　The coded design ensures that connectors are only paired with compatible sockets or plugs.This eliminates the risk of misconnections,prevents equipment failure or malfunction,and improves overall safety.

　　Identifies electrical characteristics:

　　The coding system clearly indicates the electrical attributes of the connector,such as Ethernet speed,power type and transfer capability.This helps users make informed decisions when selecting a connector for their specific application.

　　As industrial automation continues to evolve,so does the demand for high-performance connectors.m12 connectors,with their high levels of protection,vibration resistance and flexible coding options,have become an integral part of modern industrial systems.

　　Demand for M12 connectors is likely to increase in industries requiring high-speed Ethernet and smart manufacturing.As data rates and network bandwidth continue to grow,M12 connectors will evolve to meet these higher demands.In particular,X-code connectors are expected to play an important role in the future of high-speed industrial Ethernet,while other coding types will continue to improve to meet a variety of industrial requirements.
