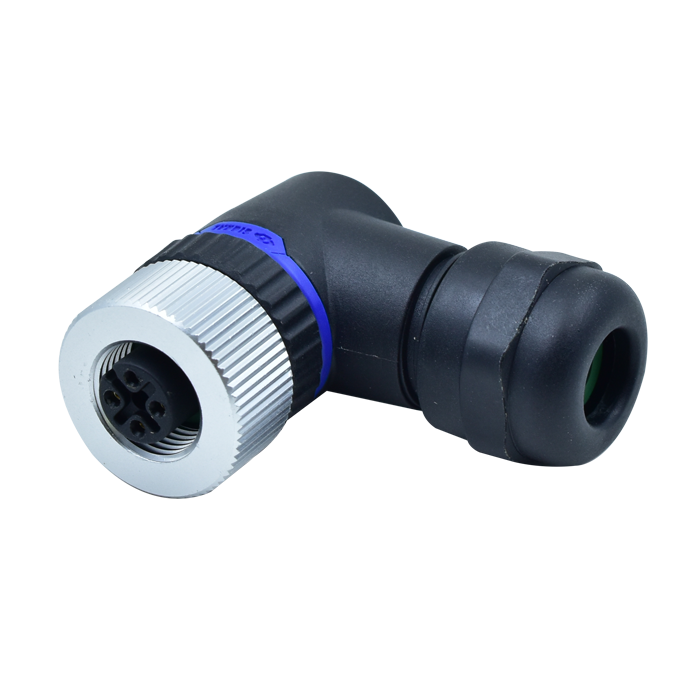

M12 A-Coding 4 Pins Female Elbow Assembly Connector

    Order No.: 120104-02-024

    Product No.: N / A

Return to List

General Characteristics

ContactsTerminationWire gauge in mm²Wire gauge in AWGShell protectionMechanical operationUpper temperatureLower temperture
4screw--IP67 / IP68>100 mating cycles+85℃-25℃

Electrical Characteristics

Rated voltageRated current(40℃)Contact resistanceInsulation resistance
250V4A≤10 mΩ≥100MΩ

Materials

Pin contactSocket contactContact plating
CuZnCuSnAu
