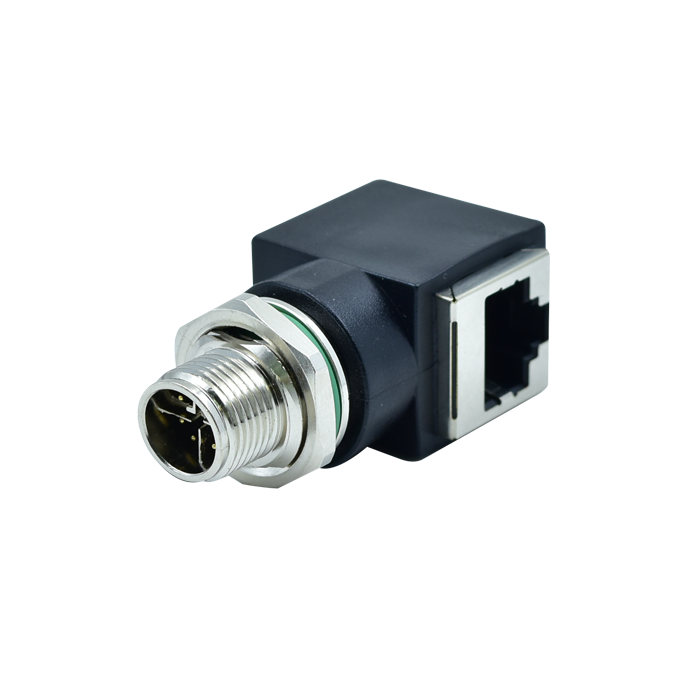

M12 D-coding 4 Pins Male to RJ45 Adapter (180°)-M12 Connectors-Shenzhen Signal Electronics Co.,LTD

Order No.: 120404-10-005

Product No.: N/A

Return to List

Technical Data Download 3D

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
4	-	-	-	IP67 / IP68	＞100 mating cycles	+85℃	-25℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
250V	4A	≤10mΩ	≥100MΩ

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au

The 3D feature is not yet available, so stay tuned!
