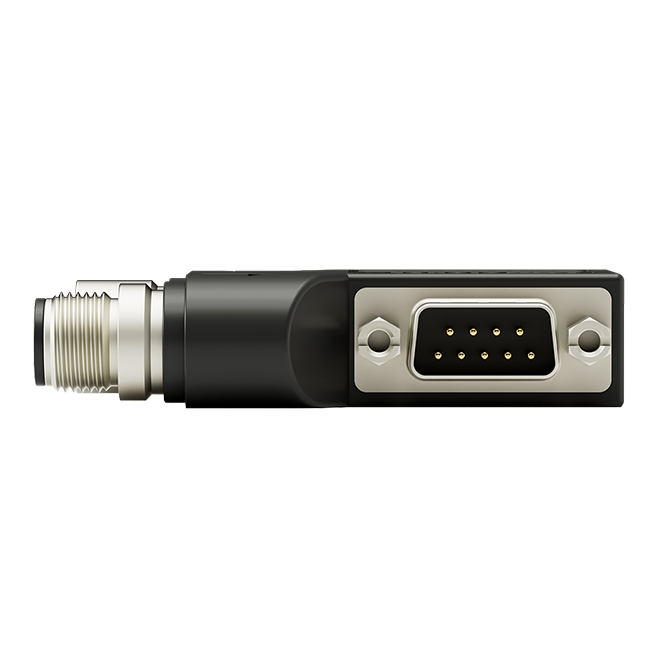

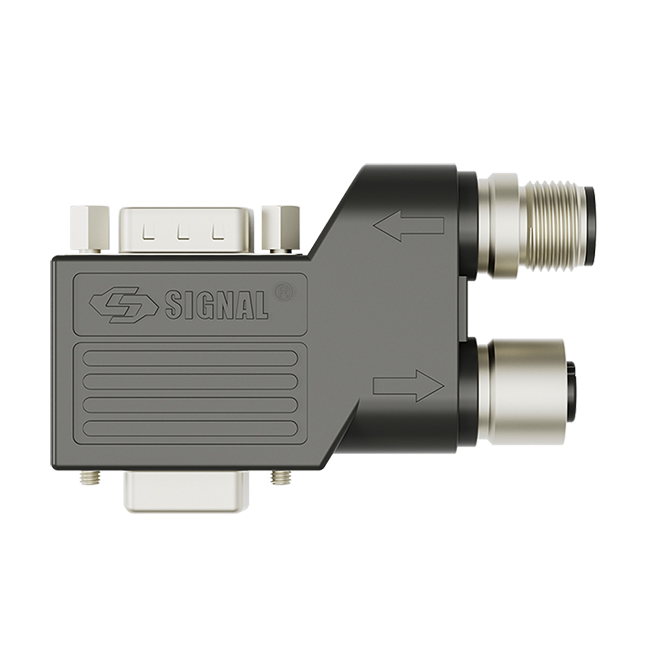

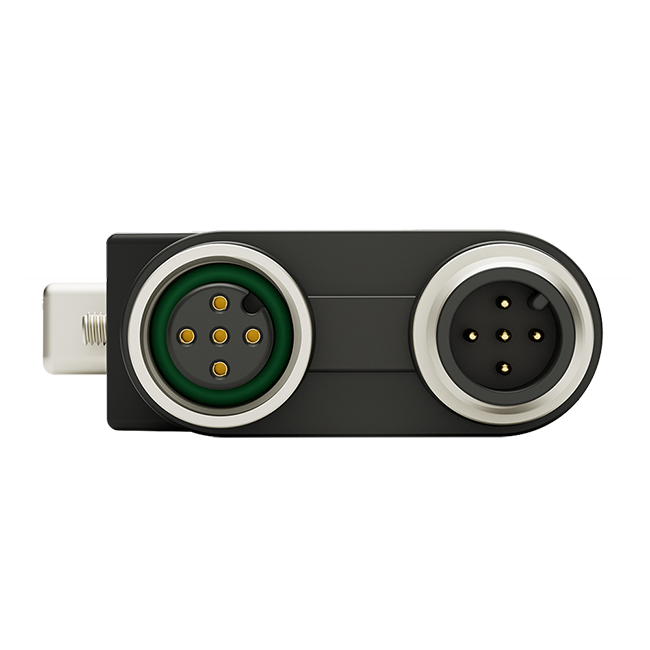

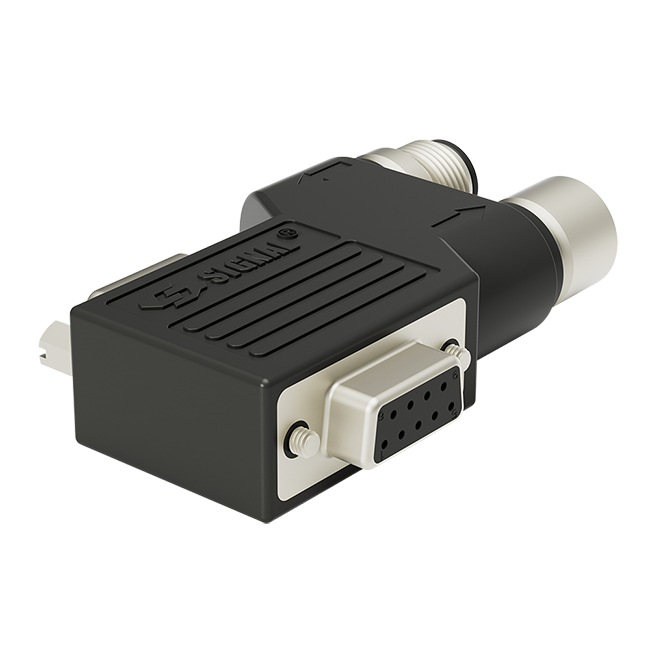

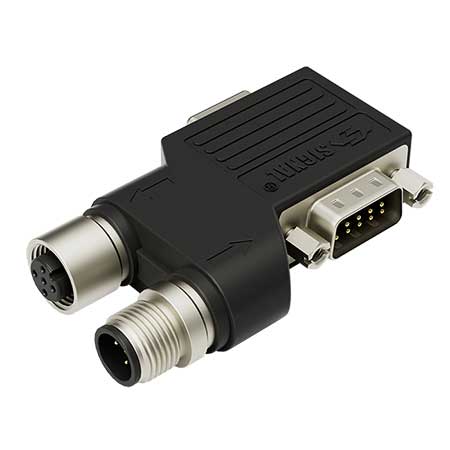

D-Sub 9 Pins Male Field Wirable Assembly,Solder Type(DB)-D-Sub-Shenzhen Signal Electronics Co.,LTD

Return to List

Technical Data Download 3D

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
9	-	-	-	IP67	＞100 mating cycles	+85℃	-25℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
5V	100mA	≤10mΩ	≥100MΩ

The 3D feature is not yet available, so stay tuned!
