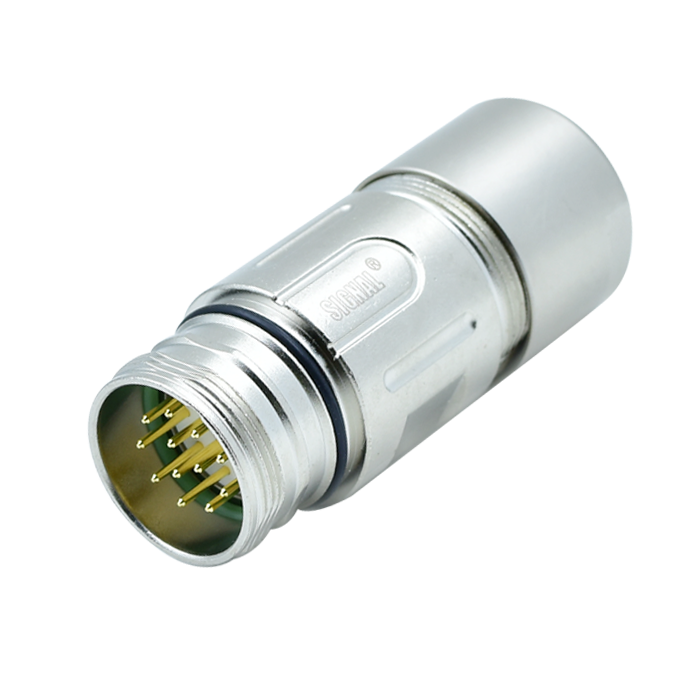

M23 12Pins Male Straight Assembly Connector

  • Order No.: 230012-01-008

  • Product No.: N / A

Return to List
Technical Data Download 3D

General Characteristics

ContactsTerminationWire gauge in mm²Wire gauge in AWGShell protectionMechanical operationUpper temperatureLower temperture

12


crimp--IP67/IP68＞100 mating cycles+85℃-25℃

Electrical Characteristics

Rated voltageRated current(40℃)Contact resistanceInsulation resistance
600V/300V/60V28A/8A/2A
≤5mΩ≥100MΩ

Materials

Pin contactSocket contactContact plating
CuZnCuSnAu


The 3D feature is not yet available, so stay tuned!
