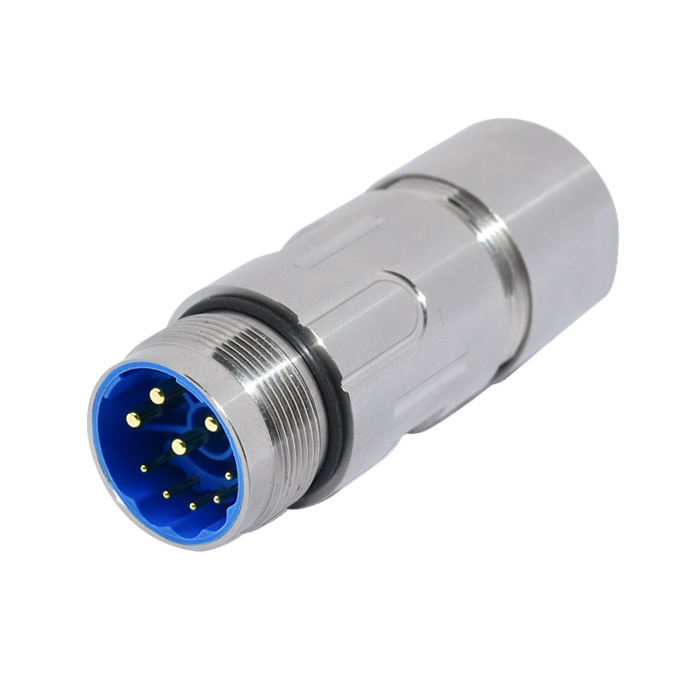

M23 9Pins Male Straight Assembly Connector-M23 Connectors-Shenzhen Signal Electronics Co.,LTD

Order No.: 230009-01-008

Product No.: N / A

Return to List

Technical Data Download 3D

Contacts

Termination

Wire gauge in mm²

Wire gauge in AWG

Shell protection

Mechanical operation

Upper temperature

Lower temperture

crimp

IP67/IP68

＞100 mating cycles

+85℃

-25℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
600/250V	28A/10A	≤5mΩ	≥100MΩ

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au
