Home > Products >Circular Connectors > M16 Connectors
scarpa

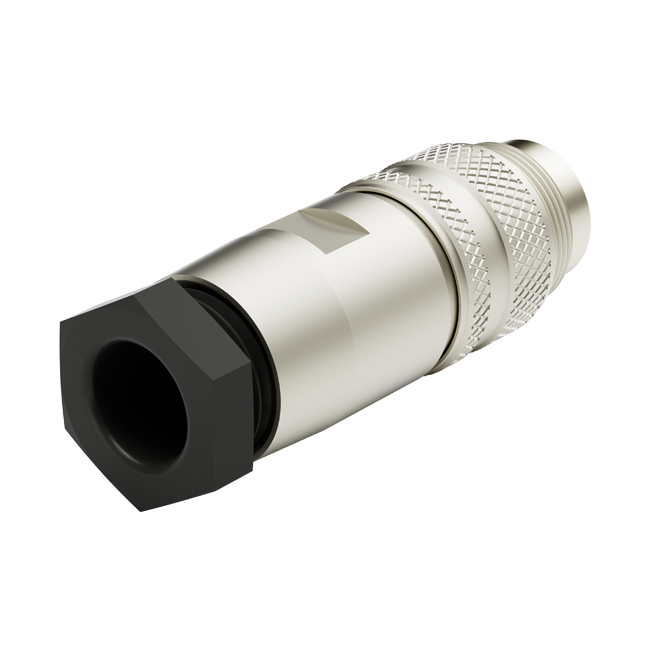

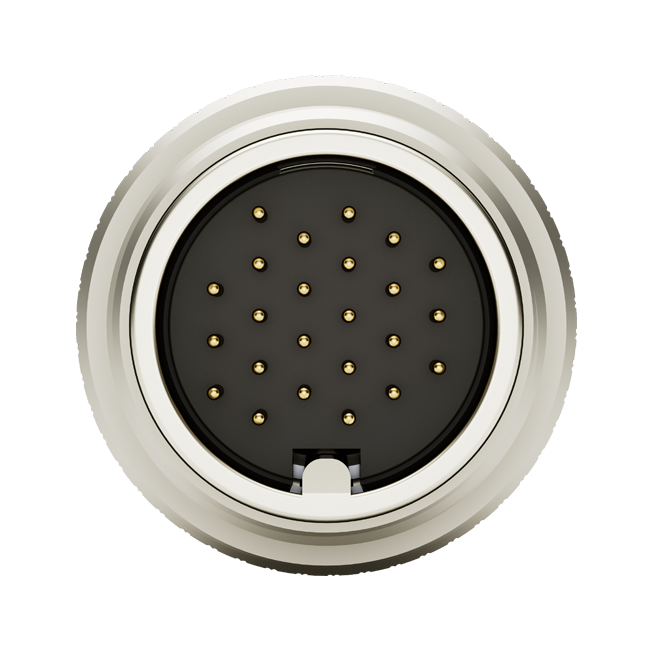

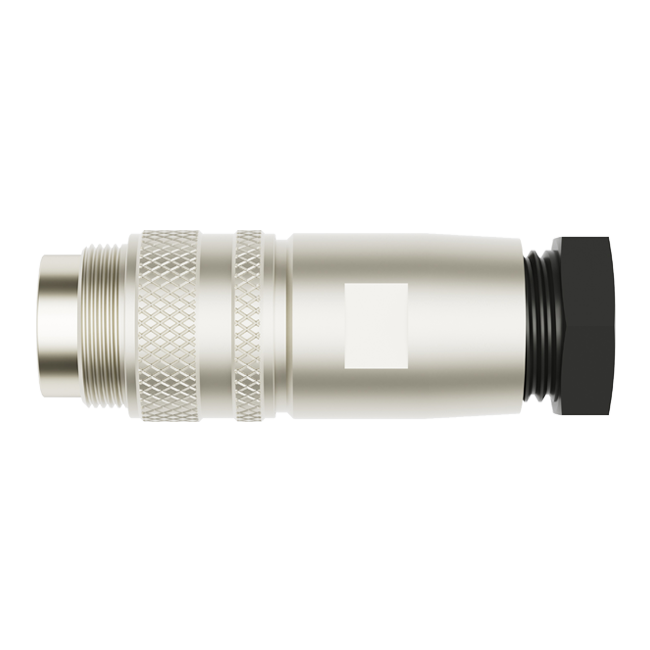

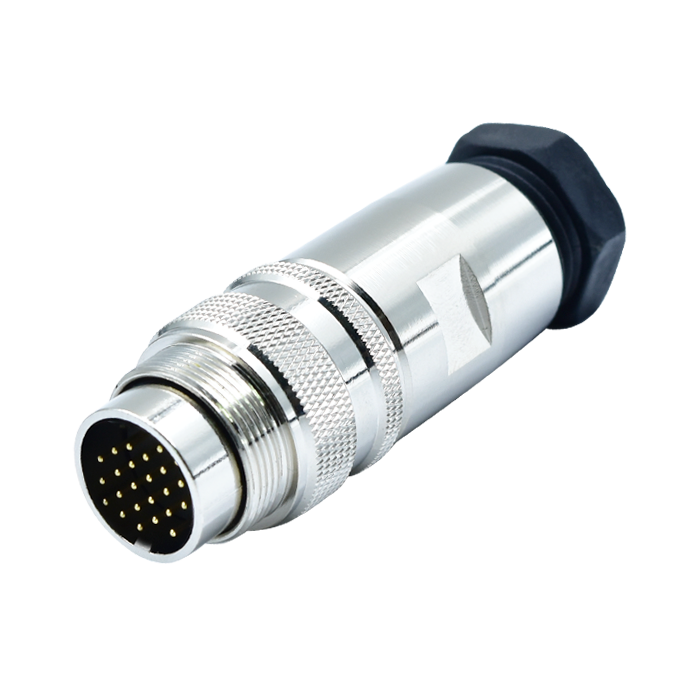

M16 24pins male assembly connector( solder ,metal)

  • Order No.: 160024-01-002

  • Product No.: N / A



Return to List
Technical Data Download 3D

General Characteristics

ContactsTerminationWire gauge in mm²Wire gauge in AWGShell protectionMechanical operationUpper temperatureLower temperture
24soldermax 0.14max 26IP67 / IP68＞100 mating cycles+85℃-25℃

Electrical Characteristics

Rated voltageRated current(40℃)Contact resistanceInsulation resistance
32V1A≤3mΩ≥100MΩ

Materials

Pin contactSocket contactContact plating
CuZnCuSnAu


3D
