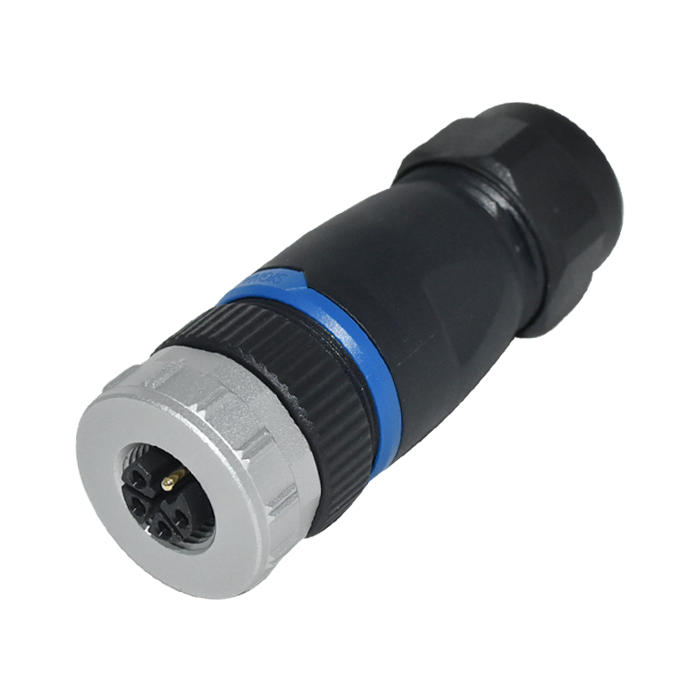

M12 L-Coding 5 Pins Female Straight Assembly Connector(plastic,screw clamp) -M12 Connectors-Shenzhen Signal Electronics Co.,LTD

Order No.: 121005-02-012

Return to List

Technical Data Download 3D

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
5	screw	0.34	22	IP67 / IP68	＞100 mating cycles	+85℃	-25℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
63V	16A	≤10mΩ	≥100MΩ

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au
