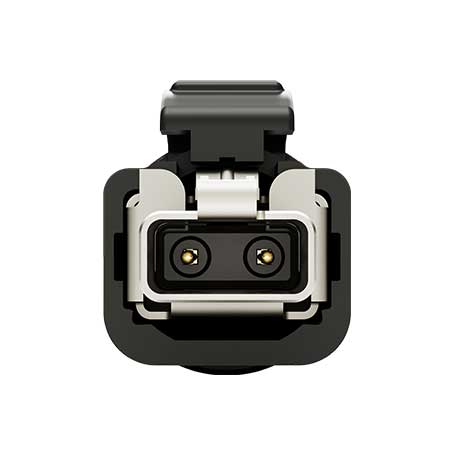

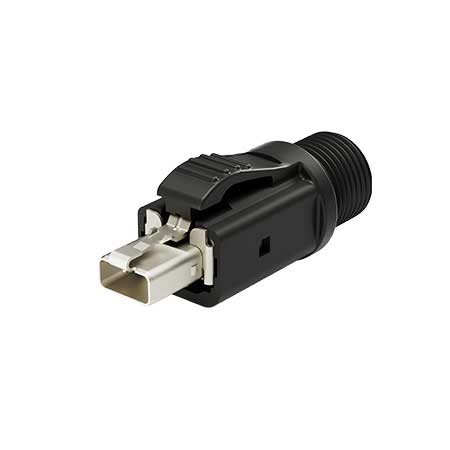

M12 SPE 2Pins Plug Molded Connector(Crimp Type)

Return to List

Technical Data Download 3D

General Characteristics

Poles	Termination	IEC Standards	Cable OD	IP Rating	Mechanical operation	Upper temperature	Lower temperture
2	crimp	IEC 63171-6	4~6mm	IP20	-	+85℃	-25℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
60V	4A	≤20mΩ	≤100MΩ

The 3D feature is not yet available, so stay tuned!
