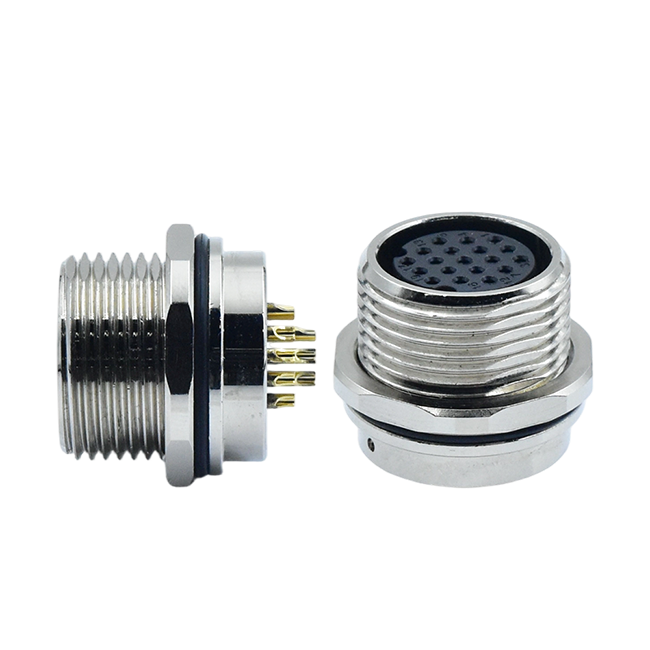

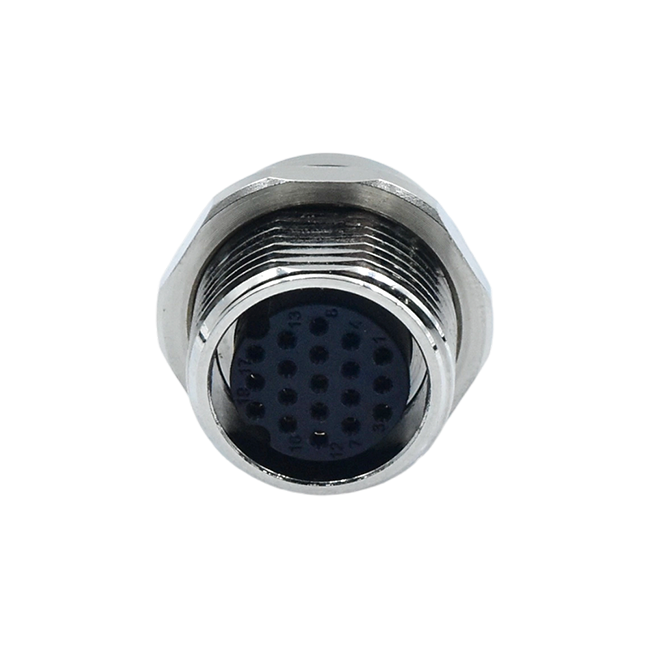

M15 19Pins Female Connector With Panel Mounting (Front Lock)-M15 Connectors-Shenzhen Signal Electronics Co.,LTD

Return to List

Technical Data Download 3D

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
19	solder	-	-	-	＞100 mating cycles	+80℃	-25℃

Rated voltage	Rated current	Contact resistance	Insulation resistance
30V	1A	≤10mΩ	>100MΩ

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au
