MINI-FAKRA: Connecting Smart Vehicles, Driving into the Future

　　If you have been following the automotive electronics sector over the past two years, you will have noticed a clear trend: an "explosive" increase in the number of vehicle sensors.

　　L2+ intelligent driving systems typically come equipped with 8 to 11 cameras as standard;

　　Forward-facing radars, corner radars, and in-cabin monitoring radars are being layered together;

　　LiDAR is shifting from an "optional extra" to a "standard feature";

　　And within the cockpit, multi-screen connectivity, AR-HUDs, and electronic side mirrors are becoming commonplace.

　　These devices generate massive amounts of data continuously. A single 8-megapixel camera, for instance, can produce a raw data bandwidth reaching several gigabits per second (Gbps). Traditional wiring harnesses are simply no longer up to the task of reliably delivering this data to domain controllers.

　　Consequently, making connectors "slimmer" and "faster" has become a critical necessity.

　　一、Four Key Features of Mini-FAKRA Connectors

　　1、Ultra-Compact Size

　　Compared to traditional FAKRA connectors, Mini-FAKRA connectors are approximately 80% smaller in volume. This frees up significant space and reduces weight in space-constrained areas such as camera modules and domain controller interfaces.

　　2、Broadband RF Performance

　　With an operating frequency range extending beyond 15 GHz, these connectors handle both digital signals and RF applications, offering versatile functionality.

　　3、True High-Speed Capability

　　Supporting data rates of 20 Gbps or higher, they easily handle real-time video streams from 8-megapixel (or higher resolution) cameras, meeting the rigorous bandwidth demands of ADAS and autonomous driving systems.

　　4、Automotive-Grade Reliability

　　Inheriting the fool-proof coding and locking mechanisms of FAKRA connectors, they feature automotive-grade characteristics—such as vibration resistance, temperature tolerance, and water/dust resistance (depending on the sealing solution)—making them suitable for harsh automotive environments.

　　二、What are the application areas for Mini-FAKRA connectors?

　　The primary arena for Mini-Fakra is any automotive application requiring a combination of compact size and high bandwidth:

　　1、Audio/Video System

　　Satellite broadcasting, high-definition displays, front-passenger entertainment screen, rear-seat touchscreen controls, digital television (DAB, Sirius XM), and multimedia video input and transmission.

　　2、Automotive electronic systems

　　GPS antenna, keyless entry, automatic parking, rearview camera system, and in-vehicle communication modules (4G/5G, Wi-Fi, V2X).

　　3、Electrification of Industrial and Commercial Vehicles

　　Electric buses, electric construction vehicles, electric trucks, electric agricultural vehicles, electric motorcycles.

　　4、Diagnostic and Safety Systems

　　OBD (On-Board Diagnostics) system, airbag deployment connection, high-beam assist, lane assist, traffic sign recognition, night vision, and surround-view, front-view, rear-view, and side-view systems.

　　5、Synchronous Translation Robot Solution

　　Suitable for high-vibration application environments such as motorcycles, AGVs, robotic dogs, embodied robots, and sweeping robots, as well as industrial automation. Cable options rated for 3–5 million cycles are available, meeting transmission requirements for high-motion and high-flexing scenarios, such as those involving cable carriers.

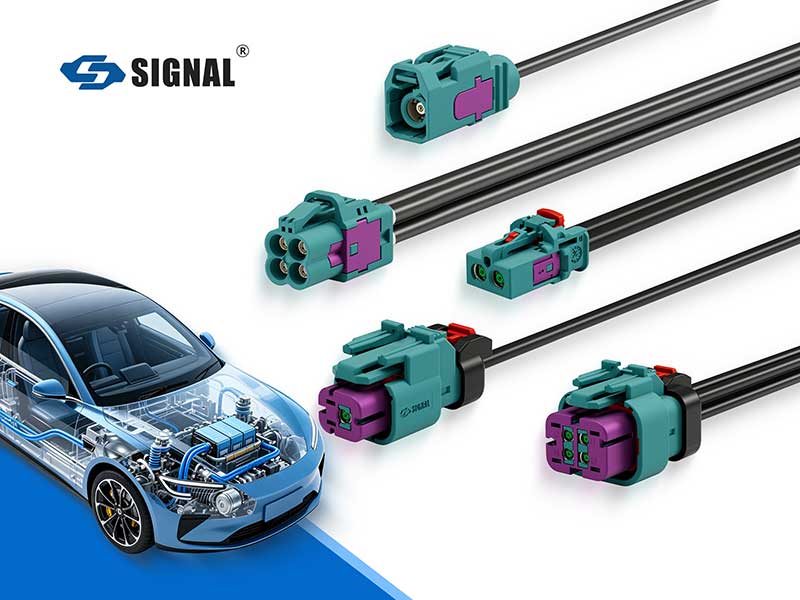

　　SIGNAL Mini-FAKRA series connectors are widely used in the automotive and robotics sectors. If you are interested in the Mini-FAKRA series, please contact us via private message to request a free trial.
