SIGNAL M12 Connectors: The "Invisible Guardians of Connectivity" for Rail Transit

　　With rapid economic growth, the swift expansion of urban scale, and the accelerating pace of urbanization, the role of rail transit has become increasingly prominent. Rail transit systems employ various automation devices centered on computer processing technology; consequently, establishing stable, reliable, and secure connections between these diverse devices is of critical importance.

　　Application of SIGNAL M12 Connectors in Rail Transit

　　From onboard train equipment to trackside infrastructure, and from real-time monitoring to intelligent control, SIGNAL M12 connectors are deeply integrated into key rail transit systems, serving as indispensable core components for the industry's intelligent upgrade.

　　1. Onboard Equipment Systems

　　Covering core components such as train door control systems, onboard CCTV surveillance, carriage HVAC systems, onboard sensors, and servo drive equipment, these connectors ensure the stable transmission of control signals and monitoring data. They guarantee precise control over train movement and equipment operation, effectively eliminating issues like signal latency and system malfunctions.

　　2. Track Monitoring Systems

　　Deployed along tracks and inside tunnels, various monitoring terminals—tracking vibration, subsidence, temperature, and humidity—rely on M12 connectors for power supply and data transmission. By collecting real-time operational data, they provide the precise information needed for safety inspections and predictive maintenance, thereby fortifying the safety of rail operations.

　　3. Ground-based O&M and Communication Systems

　　Suitable for applications such as signaling base stations, ground-based dispatching auxiliary equipment, and intelligent O&M terminals. Leveraging their high-protection and high-stability characteristics, they ensure real-time communication and coordination between ground equipment and onboard systems, supporting the efficient, integrated operation of dispatching, maintenance, and monitoring.

　　Rail Transit Application Products

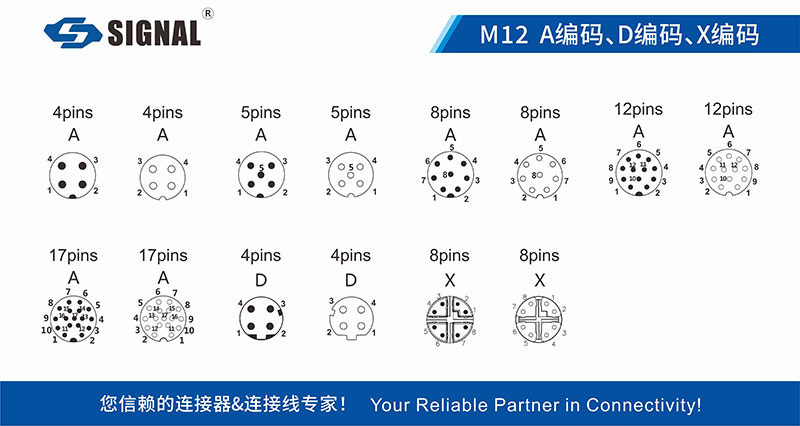

　　Given the extremely limited cabling space in rail transit environments, SIGNAL M12 crimp-style connectors—available in A-coded, D-coded, and X-coded versions—are specifically designed for this sector.

　　SIGNAL M12 Connectors Meet Rail Transit Connectivity Needs

　　SIGNAL M12 connectors have obtained professional certifications such as TUV and UL. With a comprehensive suite of certifications, they are widely used and highly acclaimed in the rail transit industry. Key features include:

　　1. High-Standard Protection Against Harsh Environmental Conditions

　　SIGNAL M12 connectors achieve IP68/IP69K dust and water protection ratings, effectively withstanding dust accumulation, water jets, and moisture condensation. They are perfectly suited for complex environments, including damp tunnels, outdoor settings, and enclosed, dusty onboard compartments. Whether facing the high humidity of the rainy season, winter condensation caused by low temperatures, or intense summer heat and sun exposure, they operate reliably and consistently. This prevents connection failures caused by environmental factors and significantly reduces equipment downtime.

　　2. Vibration and Loosening Resistance for High-Frequency Dynamic Conditions

　　Continuous vibration, jolting, and torque shocks occur during train operation, posing a major challenge for rail transit connectivity equipment. SIGNAL M12 connectors utilize a classic threaded locking mechanism combined with proprietary crimping flange technology and cable strain relief designs. They withstand vibration, shock, and harsh conditions, ensuring connections remain secure against external forces during operation and braking. Additionally, 360-degree shielding ensures connection stability, guaranteeing uninterrupted signal and data transmission.

　　3. Compliance with Rail Transit Standards and Superior Safety Ratings

　　As critical components for rail transit, these M12 connectors strictly adhere to the EN45545 fire safety standard and the EN50155 general standard for rail transit equipment. They have passed multiple fire and flame-retardancy certifications (including R22 and R23 ratings) and feature low-smoke, flame-retardant, and aging-resistant properties. Even in scenarios involving high equipment temperatures or sudden malfunctions, it effectively halts the spread of fire and prevents smoke diffusion, ensuring comprehensive operational safety for rail transit. It also operates within an ultra-wide temperature range of -40°C to +125°C, guaranteeing stable connections under extreme conditions.

　　4. Standardized and easy to assemble: Cost-effective and efficient

　　The M12 connector strictly adheres to IEC international design standards, featuring standardized interface dimensions and exceptional versatility. It allows for seamless compatibility and interchangeability between rail transit equipment from different brands, significantly reducing costs associated with equipment integration, replacement, and maintenance. Supporting both on-site rapid assembly and factory pre-assembly, it eliminates the need for complex tools or specialized procedures. Installation, inspection, and replacement are highly efficient, drastically reducing downtime for rail transit equipment maintenance and meeting the demands of high-load, continuous operation.

　　5. Additional advantages

　　Multiple installation methods: SIGNAL M12 connectors support front-panel mounting, rear-panel mounting, PCB-embedded structures, and specialized flange designs for onboard control boards, catering to the diverse application needs of rolling stock manufacturers, system integrators, and controller manufacturers.

　　One-stop connectivity solutions: In the rail transit sector, SIGNAL provides comprehensive M12 connector solutions for network control systems, train control systems, train Ethernet switches, Passenger Information Systems (PIS), safety interlocking monitoring systems, and more.

　　As smart rail transit and fully automated metro operations become increasingly widespread, the requirements for transmission speed, stability, and safety in rail transit equipment continue to rise. SIGNAL M12 connectors will continue to evolve and improve; through rigorous quality standards and optimized performance, they empower the rail transit industry to advance toward greater intelligence, safety, and efficiency, quietly safeguarding every safe journey.
