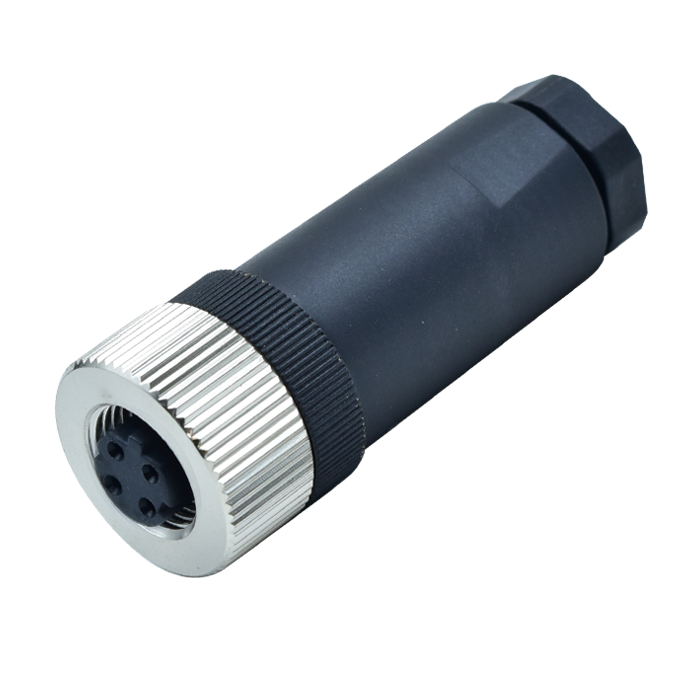

M12 D-Coding 4 Pins Female Straight Assembly Connector-M12 Connectors-Shenzhen Signal Electronics Co.,LTD

Order No.: 120404-02-002

Product No.: N / A

Return to List

Technical Data Download 3D

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
4	screw	-	-	IP67 / IP68	＞100 mating cycles	+85℃	-25℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
250V	4A	≤10 mΩ	≥100MΩ

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au

The 3D feature is not yet available, so stay tuned!
