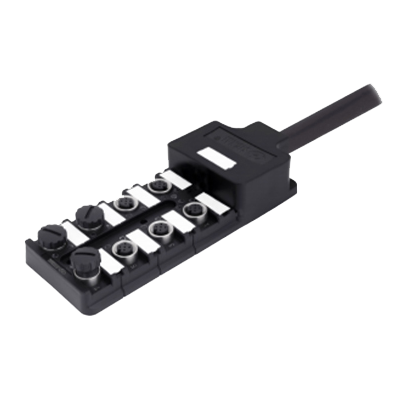

M12 8-Way Distribution Box With Cable-M12 Distribution Box-Shenzhen Signal Electronics Co.,LTD

Return to List

Technical Data Download 3D

Contacts	Termination	Cable OD	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
5	molded	7.0mm	-	IP67	＞100 mating cycles	+85℃	-25℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
60V	4A	≤10mΩ	≥100MΩ

Connector insert	Material of body	Seal	Connector contacts	Coupling nut/screw
PA+GF	PBT	KFM	Brass with gold plated	Brass with nickel plated
