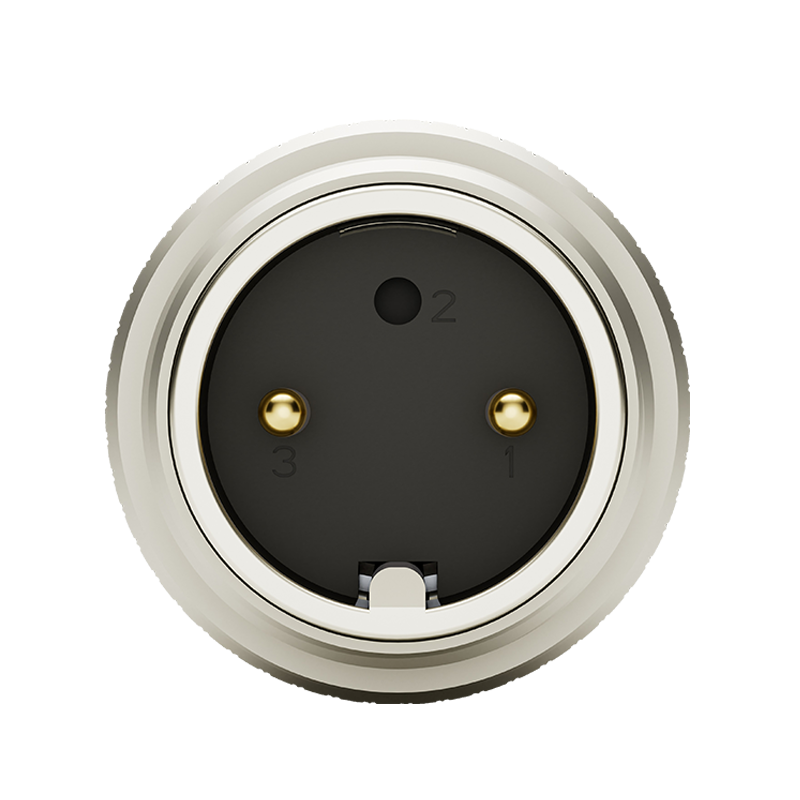

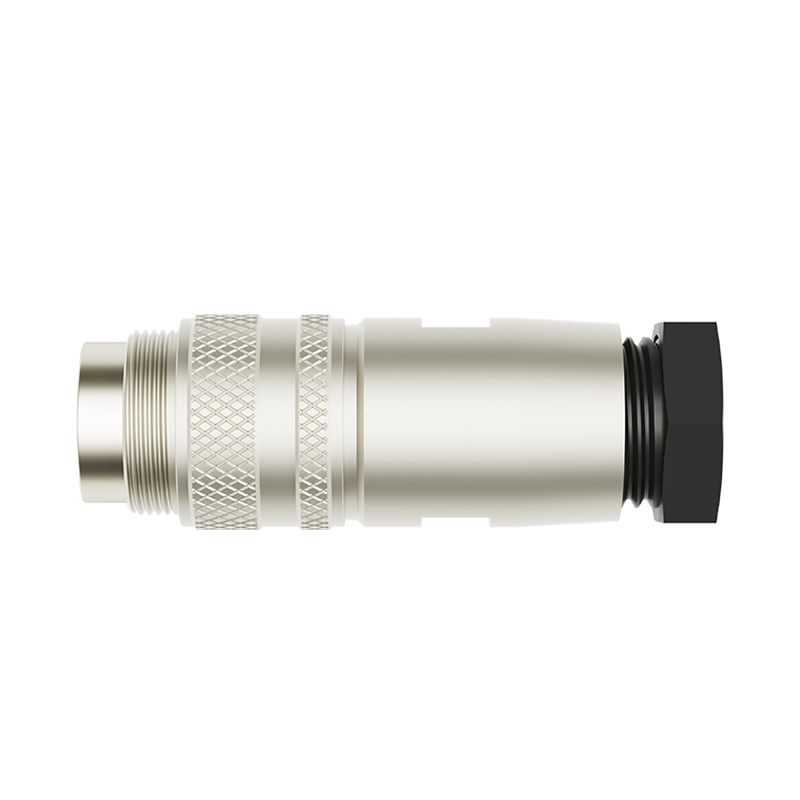

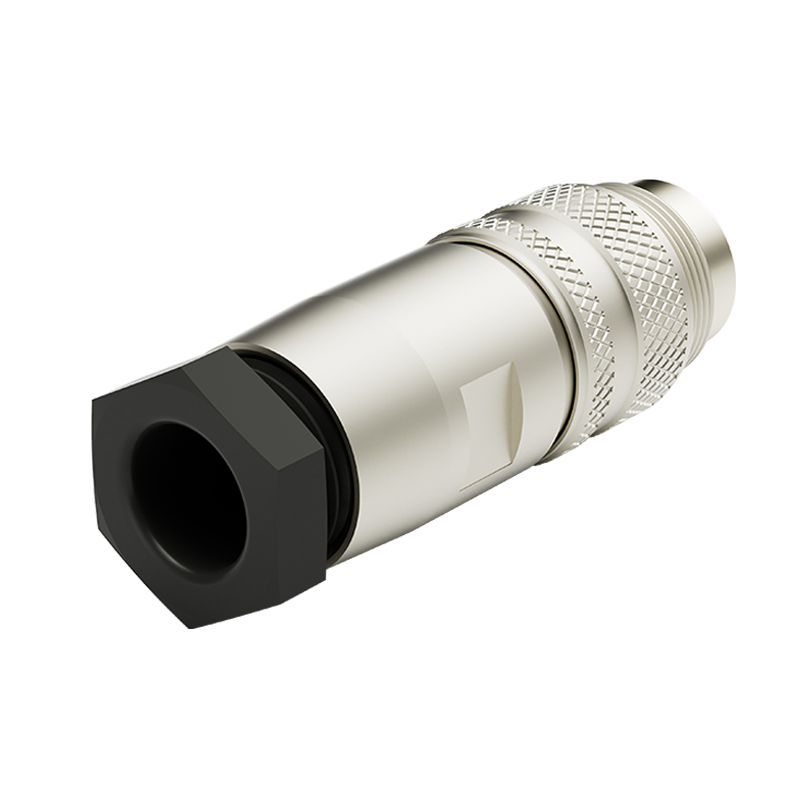

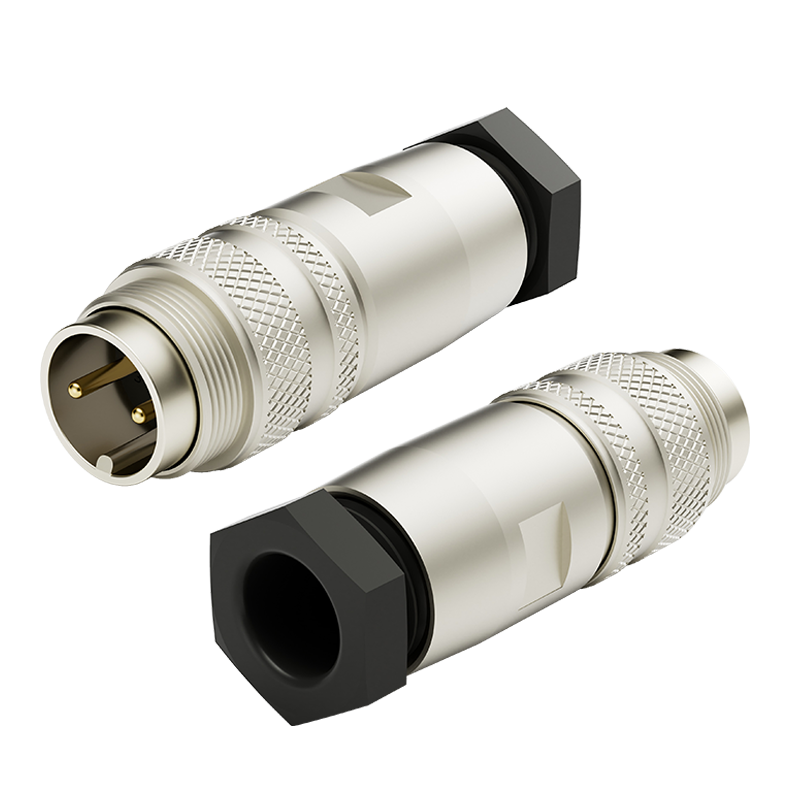

M16 2pins male assembly connector( solder ,metal)-M16 Connectors-Shenzhen Signal Electronics Co.,LTD

Return to List

Technical Data Download 3D

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
2	solder	max 0.5	max 20	IP67 / IP68	＞100 mating cycles	+85℃	-25℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
100V	5A	≤10mΩ	≥100MΩ

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au
