What are the differences between SMA connectors and BNC connectors?

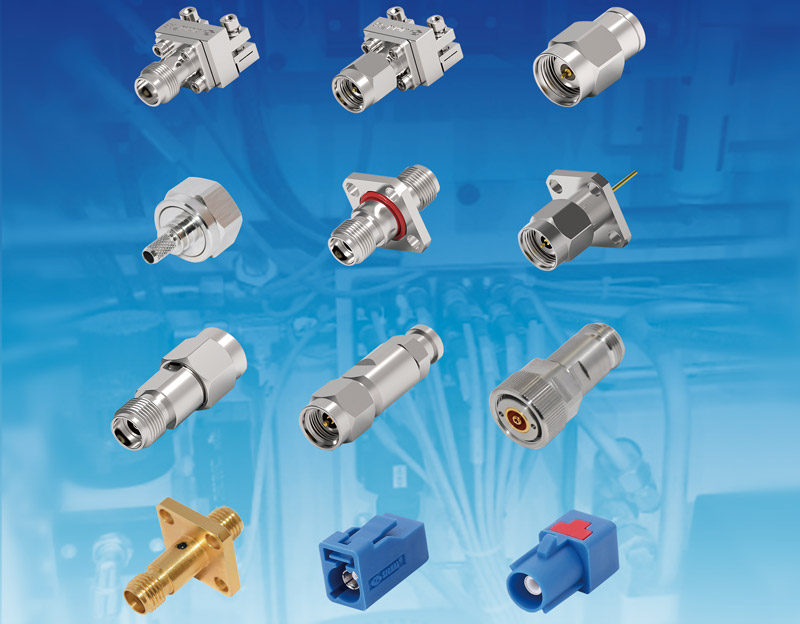

　　RF connectors—often referred to simply as RF connectors—are components attached to cables or instruments that serve as a bridge for electrically connecting or disconnecting transmission lines. There are many types of RF connectors; here, we will examine the differences between BNC and SMA connectors.

　　SMA Connectors

　　SMA connectors are widely used, compact, threaded coaxial connectors characterized by broad bandwidth, excellent performance, high reliability, and long service life. They are suitable for connecting RF cables or microstrip lines within the RF circuits of microwave equipment and digital communication systems. In wireless equipment, they are commonly found on GPS clock interfaces on circuit boards and as test ports for base station RF modules. SMA connectors were invented in the 1960s. They support signal frequencies ranging from DC to 18 GHz, with some types capable of reaching up to 26.5 GHz. Their characteristic impedance is 50 ohms.

　　BNC Connectors

　　BNC connectors are another common type of RF connector; they are compact, bayonet-style connectors designed for quick connection. BNC connectors are widely used in wireless communication systems, television, test equipment, and other RF electronic devices; they were also used in early computer networks. They support signal frequencies ranging from 0 to 4 GHz and come in two characteristic impedance options: 50 ohms and 75 ohms.

　　Straight BNC female bulkhead connector, solder-type attachment, solder cup terminal, 0.41-inch D-hole mounting.

　　Differences:

　　1. Frequency range: BNC connectors operate in the 0–4 GHz range, whereas SMA connectors operate in the 0–18 GHz range.

　　2. Applications: BNC is a low-power coaxial cable connector featuring a bayonet-style locking mechanism. SMA is suitable for high-performance microwave applications, such as internal connections within microwave equipment. SMA right-angle male connectors (with clamp or solder attachments) are compatible with RG178 and RG196 coaxial cables.

　　3. Advantages: BNC connectors allow for rapid mating and unmating; they offer reliable connections, good vibration resistance, and ease of use, making them ideal for applications requiring frequent connection and disconnection. SMA connectors are characterized by their compact size, superior performance, high reliability, and long service life.
