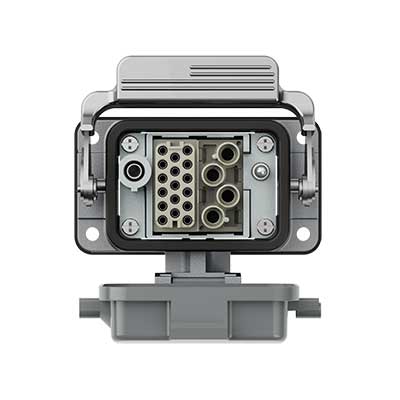

Heavy-duty connector – open-bottom, single-latch, bulkhead-mount insert (female)

Order No.: 093006-04-001

Return to List

Prev : Heavy-duty connector – open-bottom, single-latch, bulkhead-mount insert (female)
Next : Heavy-duty connector – open-bottom, single-latch, bulkhead-mount insert (male)

Technical Data Download 3D

General Characteristics

Rated current	Rated voltage	Insulation resistance	Shell protection	Mating cycles	Upper temperature	Lower temperture
40A/10A	830V/160V	≥1000MΩ	IP65	≥500	+125℃	-40℃

2D Drawing

093006-04-001

Download

The 3D feature is not yet available, so stay tuned!
