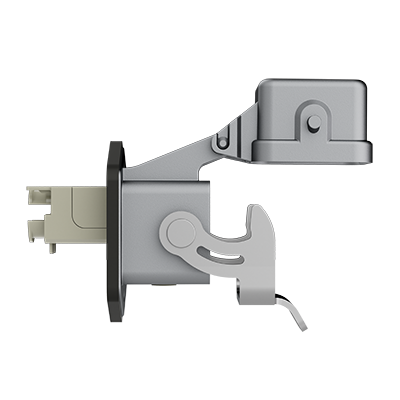

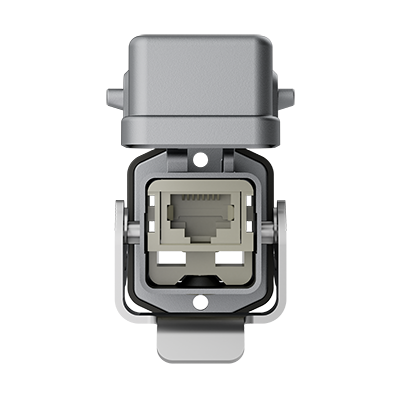

Heavy-duty connector – open-bottom, single-latch, bulkhead-mount insert (female)

Order No.: 092003-04-005

Return to List

Prev : Heavy-duty connector – open-bottom, single-latch, bulkhead-mount insert (male)
Next : Heavy-duty connector – open-bottom, single-latch, bulkhead-mount insert (female)

Technical Data Download 3D

General Characteristics

Rated current	Rated voltage	Transmission Characteristics	Shell protection	Mating cycles	Upper temperature	Lower temperture
1.76A	50V（AC）/60V（DC）	Cat.6E	IP20	≥750	+70℃	-40℃

2D Drawing

092003-04-005

Download

The 3D feature is not yet available, so stay tuned!
