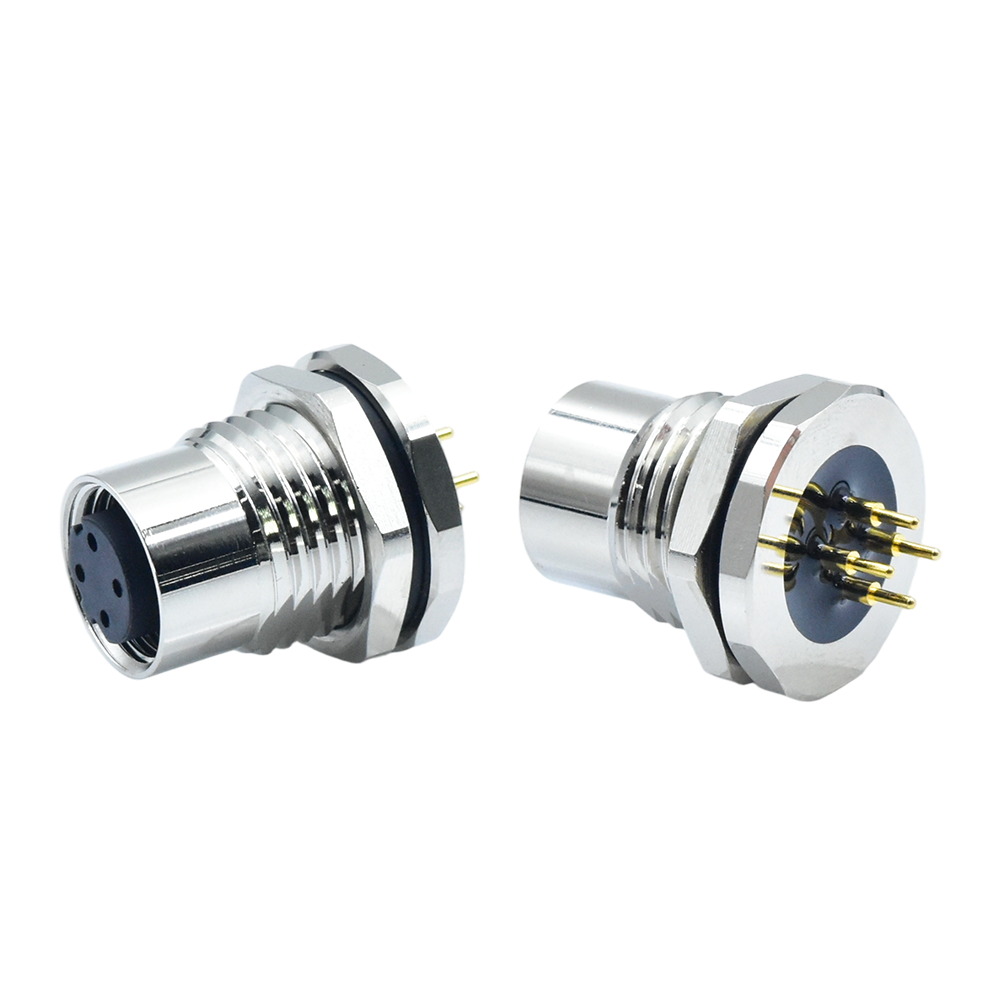

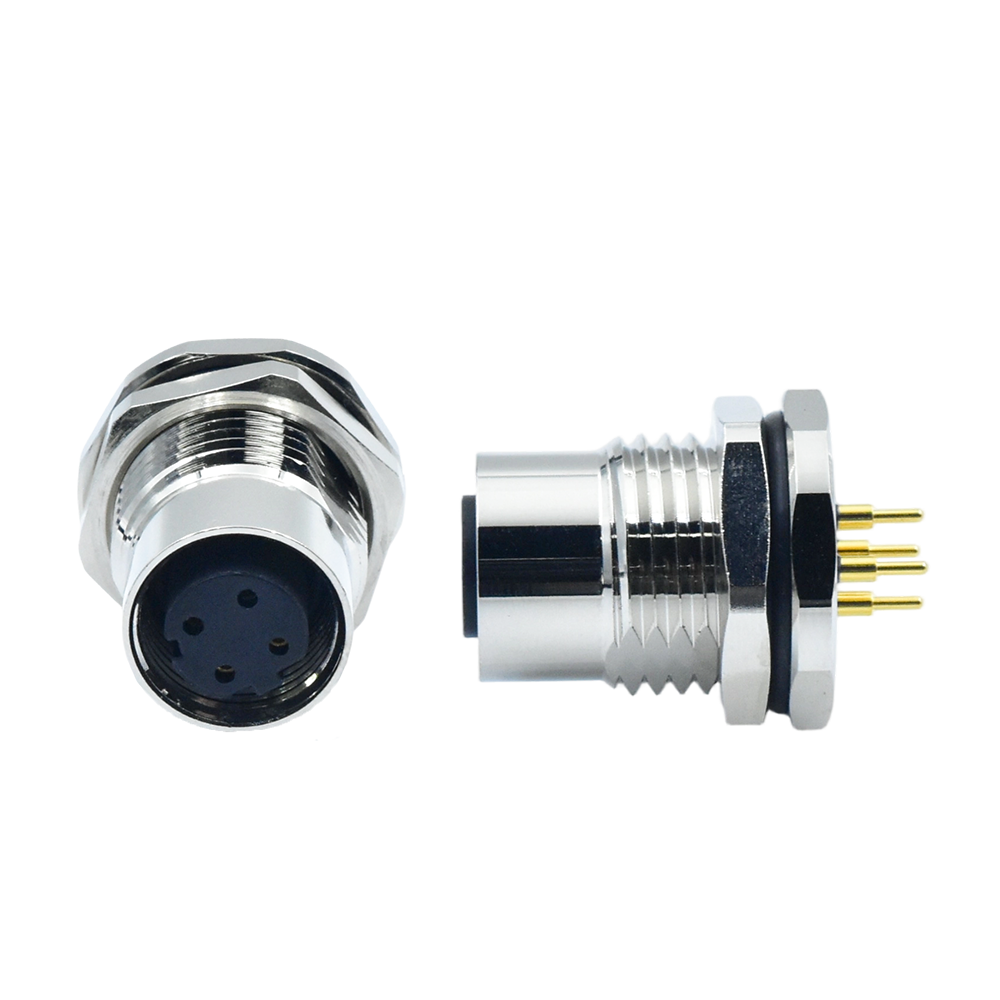

M12 D-Coding 4Pins Female Front Mount Connector -M12 Connectors-Shenzhen Signal Electronics Co.,LTD

Return to List

Technical Data Download 3D

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
4	solder	-	-	IP67	＞100 mating cycles	+105℃	-40℃

Rated voltage	Rated current	Contact resistance	Insulation resistance
250V	4A	-	-

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au

The 3D feature is not yet available, so stay tuned!
